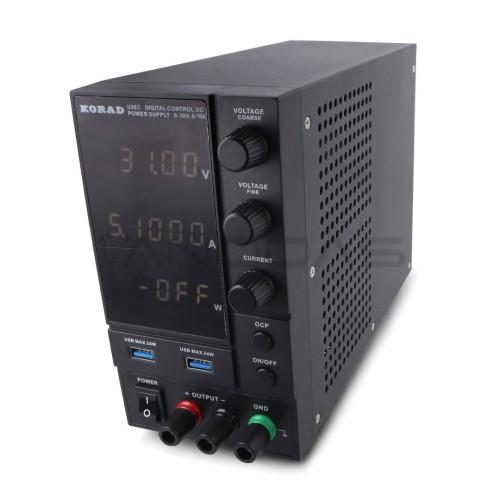

KORAD U203 30V 10A POWER SUPPLY

Laboratory power supply Korad U203 is a device that offers stable power supply for electronic devices with a voltage range from 0V to 30V and a current intensity from 0A to 10A. Precise adjustment of parameters is done using built-in knobs, and in addition, the power unit also has two 24W USB ports for fast charging of devices.   Features: Smoothly adjusts voltage from 0V to 30V and current from 0A to 10A Enables coarse voltage regulation in 1V steps and fine regulation in the range of 0.01V to 0.1V Displays the current value with an accuracy of 0.1 m A It has two 24W USB ports for fast charging of devices There is a built-in LED display that shows the current voltage, current and power values It is equipped with protection against overload and overheating When the device is turned off, it can remember the set parameter values It has on/off and O C P output switches Specifications: Voltage range: from 0V to 30V Current range: from 0V to 10A Parameter adjustment Voltage: ≤0.01% 2mV Current: ≤0.1% 5 mA Parameter setting accuracy: – Voltage: 10 mV – Current: 1 mA Setting accuracy: – Voltage: ≤0.5% 10 mV – Current: ≤0.5% 5 mA Output voltage ripple: – Voltage: ≤20mVrms – Intensity: ≤10 mArms Dimensions: 231x95x168mm Weight: 2.5 kg
